Overview
WiFi Analyzer Pro is an enterprise WiFi monitoring and diagnostics platform that provides real-time WiFi signal strength analysis, channel utilization mapping, and interference detection. The Python backend interfaces with system WiFi adapters to stream signal data via WebSocket to a React frontend that visualizes network health with interactive charts and diagnostic recommendations.
Problem Statement
Network troubleshooting is often a black box for non-specialists. WiFi issues like interference, channel congestion, and signal degradation require specialized tools that are typically command-line only and produce raw data. Teams needed a visual, real-time tool that translates raw WiFi metrics into actionable diagnostics without requiring networking expertise.
Architecture Overview
A Flask backend handles WiFi adapter interfacing through platform-specific system calls, parsing raw scan output into structured signal data. WebSocket streaming delivers updates every 500ms to the React frontend. SQLite stores historical scan data for trend analysis. The architecture separates platform-specific adapter code behind an abstraction layer for cross-OS support.
Tech Stack
Key Features

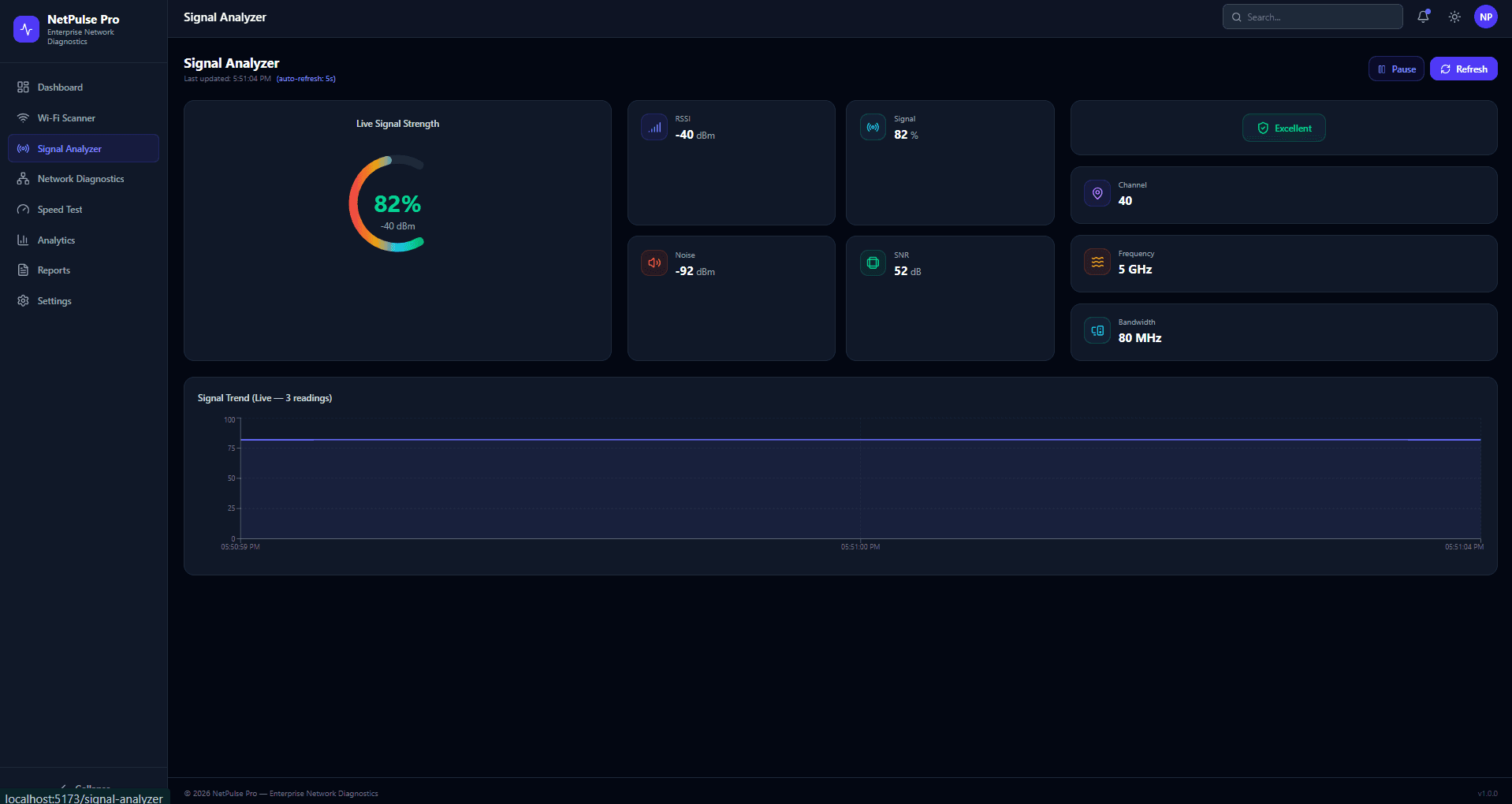

Real-Time Signal Monitoring
Live signal strength visualization updating every 500ms with smooth chart animations and trend indicators
Channel Analysis
Visual channel utilization map showing congestion, overlapping networks, and optimal channel recommendations
Interference Detection
Automated detection of non-WiFi interference sources and co-channel interference with severity scoring

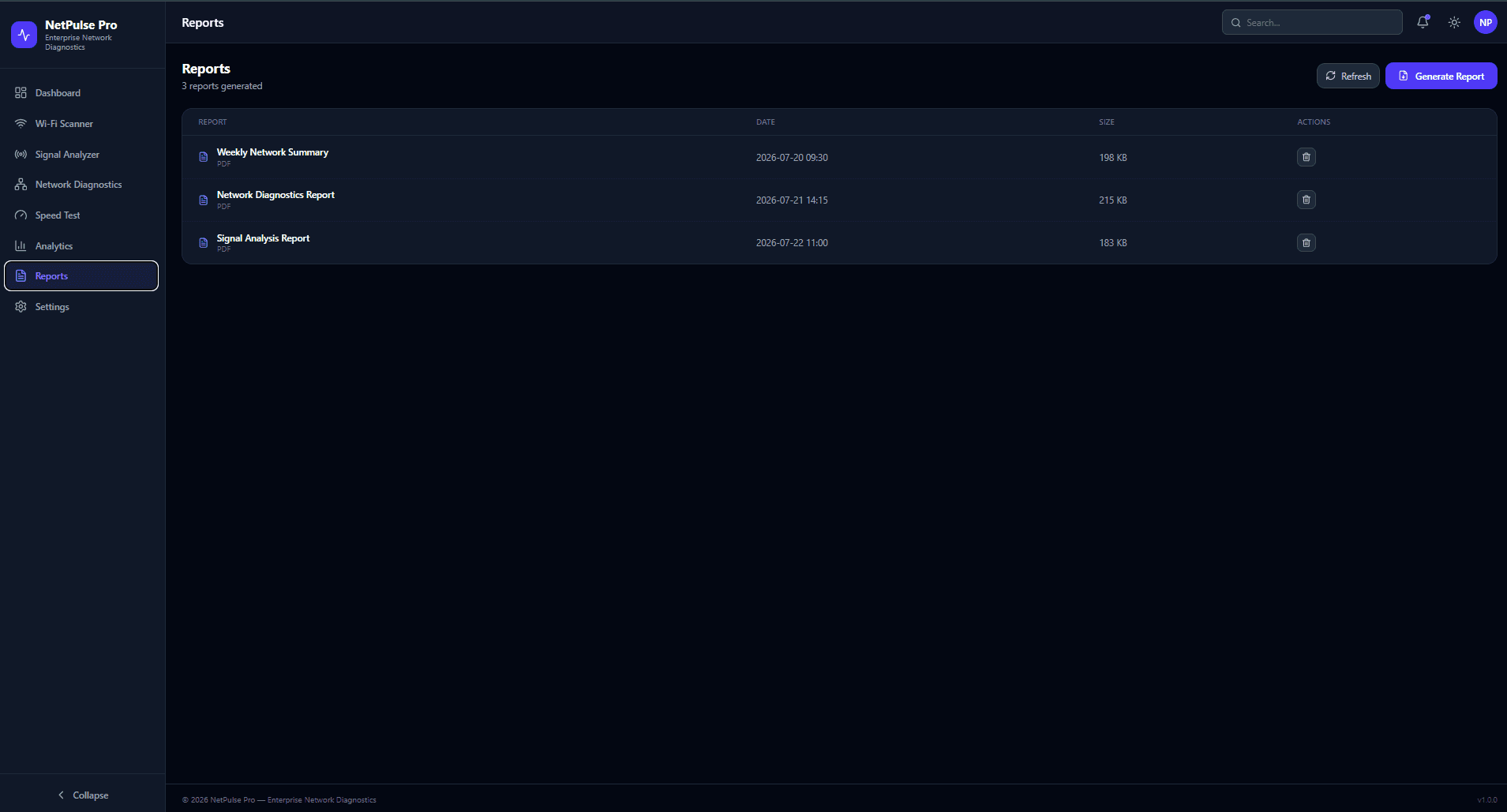

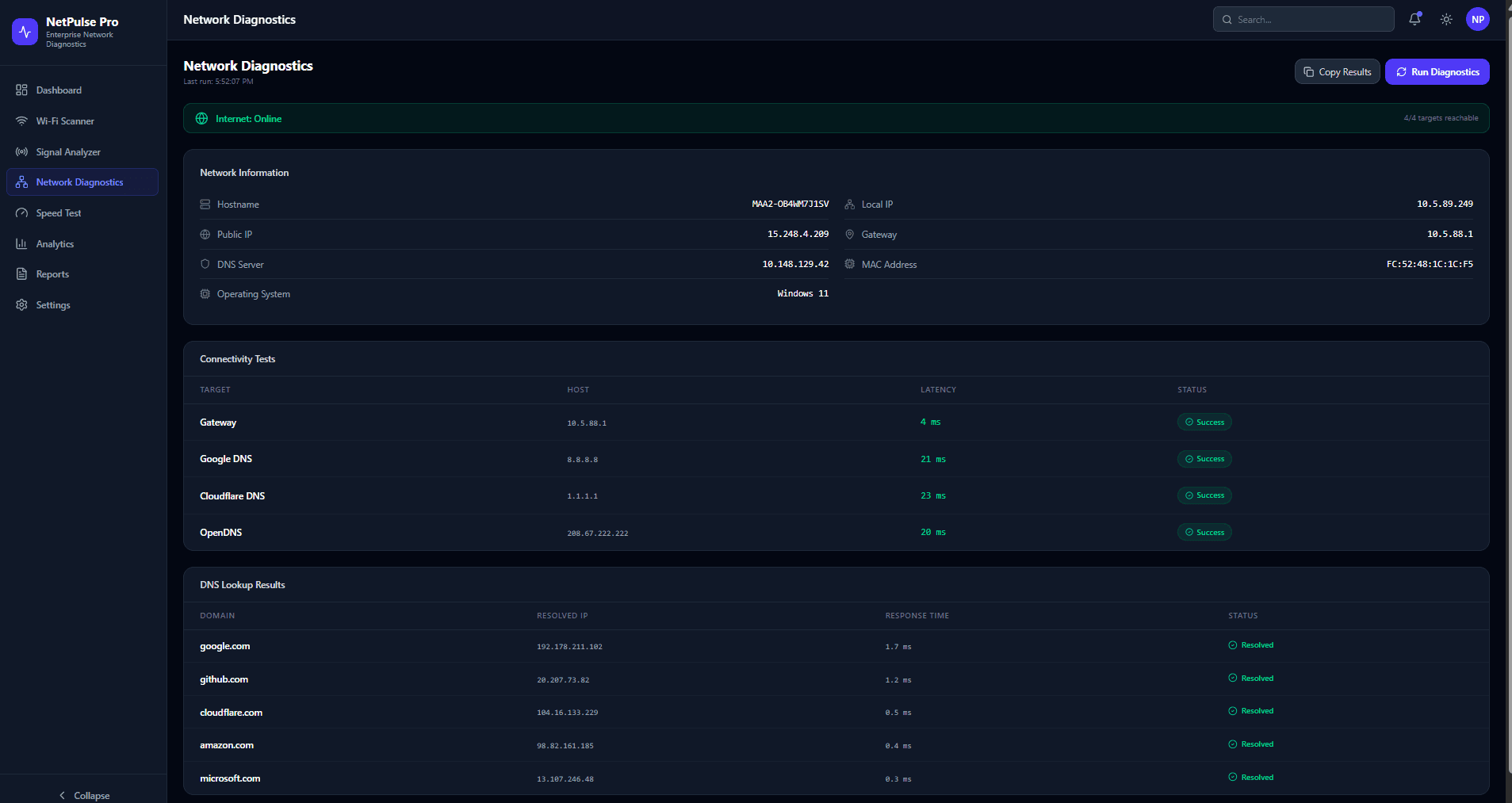

Network Diagnostics
One-click diagnostic reports with plain-language recommendations for improving network performance

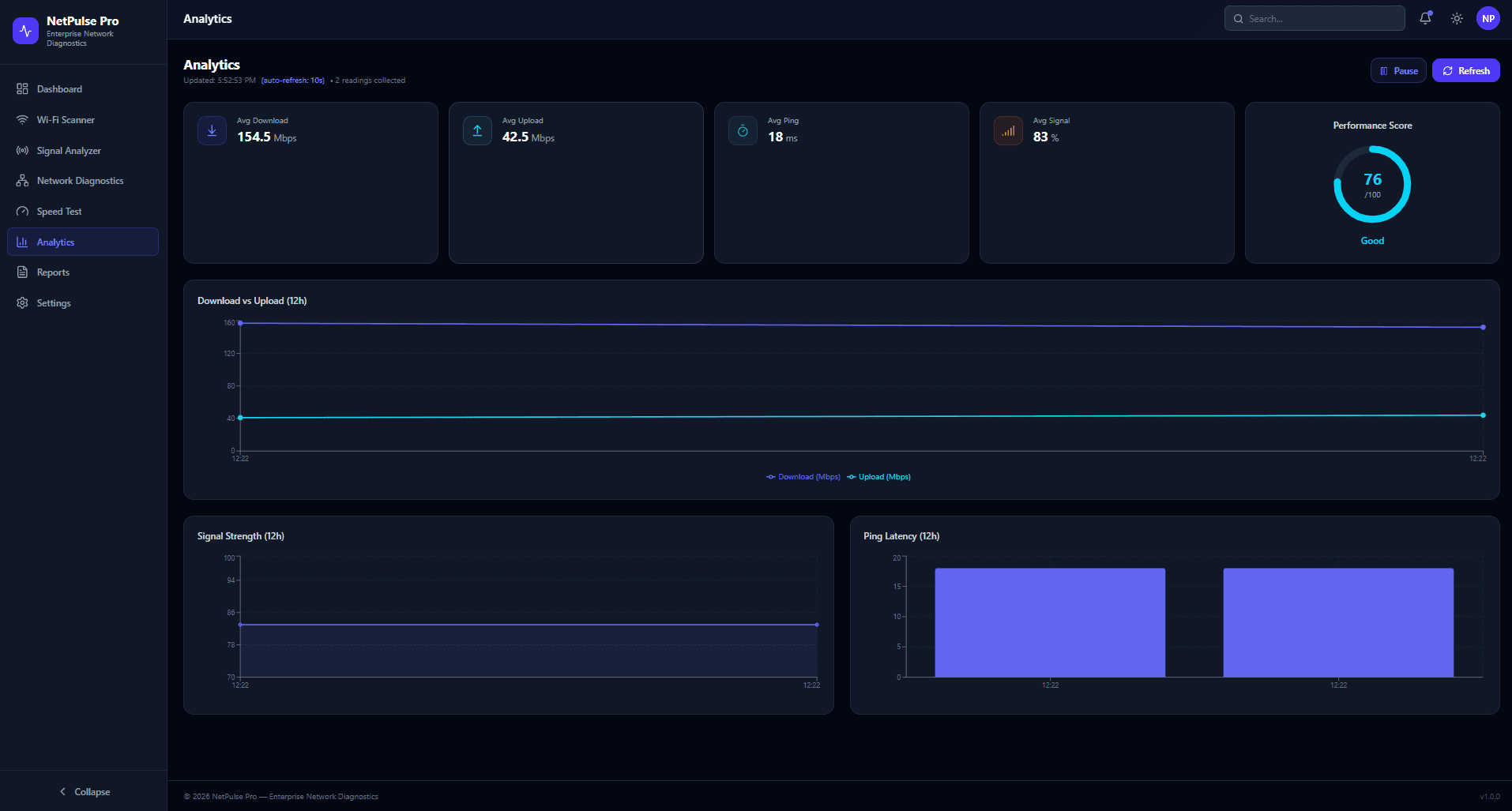

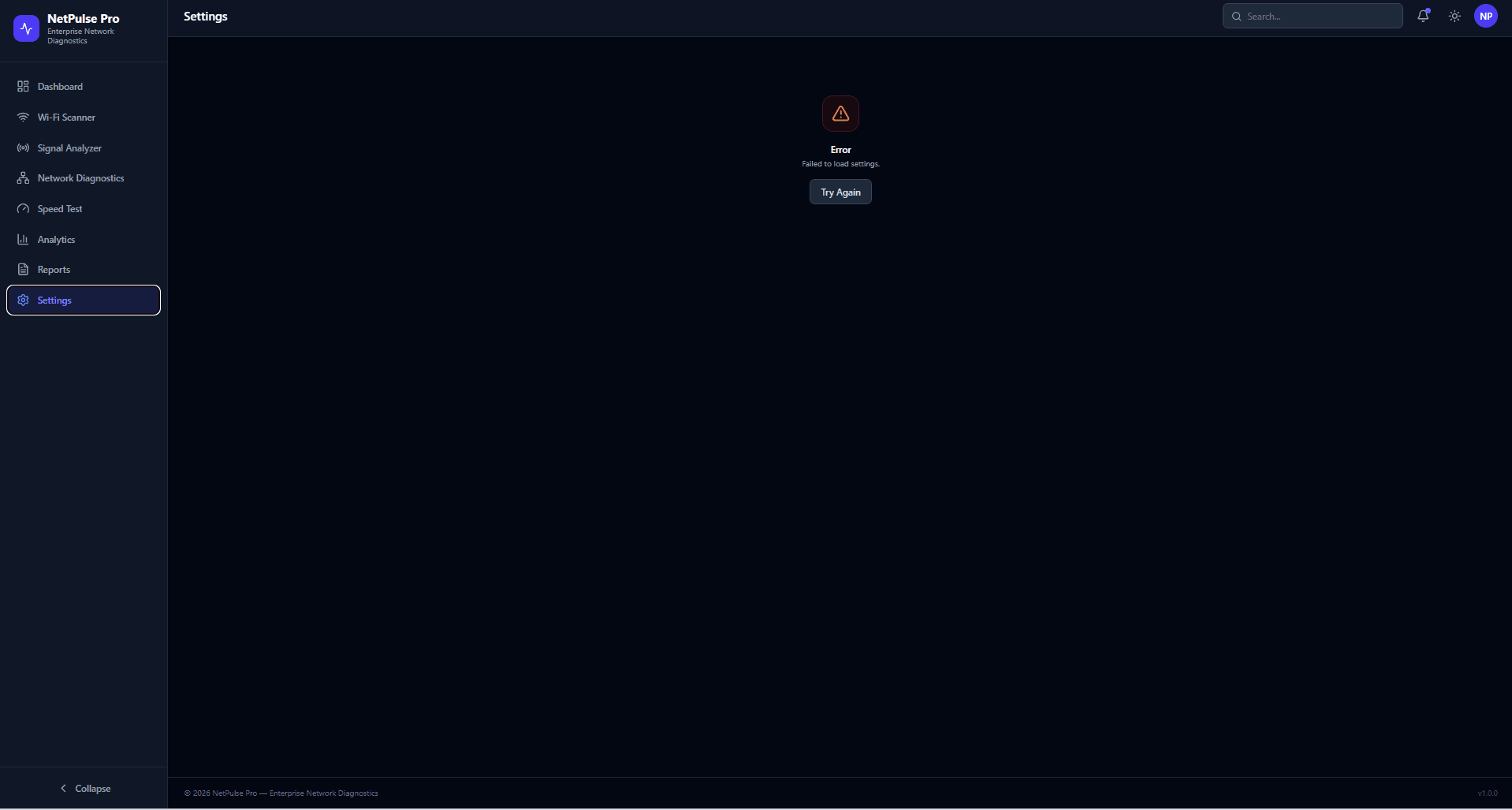

Screenshots
Engineering Challenges
Real-time data streaming without overwhelming the frontend
Implemented adaptive sampling rates that increase frequency during signal instability and decrease during stable periods. Added client-side data windowing to maintain smooth chart performance with bounded memory usage.
Cross-platform WiFi adapter access
Built an abstraction layer with platform-specific implementations for Linux (iwlist/iw), macOS (airport), and Windows (netsh wlan). Each adapter implements a common interface returning normalized signal data.
Accurate interference detection from signal data
Developed a signal fingerprinting algorithm that distinguishes between WiFi co-channel interference and non-WiFi sources by analyzing signal pattern periodicity and spectral characteristics.
class WiFiScanner(ABC):
@abstractmethod
def scan(self) -> list[NetworkSignal]:
"""Scan available networks and return signal data."""
pass
class LinuxScanner(WiFiScanner):
def scan(self) -> list[NetworkSignal]:
output = subprocess.check_output(['iw', 'dev', self.interface, 'scan'])
return self._parse_iw_output(output.decode())
def _parse_iw_output(self, raw: str) -> list[NetworkSignal]:
networks = []
for block in raw.split('BSS '):
if signal := self._extract_signal(block):
networks.append(signal)
return networksTesting Strategy
pytest handles backend testing with mock WiFi adapter responses for consistent cross-platform test execution. Signal parsing unit tests verify correct interpretation of raw scan output from each platform. Integration tests validate WebSocket message format and delivery timing. Frontend tests use pre-recorded signal data for deterministic chart rendering verification.
Deployment
The Flask backend runs as a Python web server with WebSocket support for real-time connections. The React frontend is bundled separately. SQLite is used for local storage, keeping the deployment lightweight for single-instance use. Docker provides a unified development environment across operating systems.
Lessons Learned
- Platform-specific system calls are the biggest source of bugs — abstract early and test with recorded output
- WebSocket backpressure handling prevents memory leaks when clients fall behind on message processing
- Adaptive sampling rates dramatically improve UX — constant high-frequency updates are wasteful and cause jank
- SQLite is perfectly adequate for single-user tools and eliminates deployment complexity
